Product Summary

M30620FCPGP absolute maximum ratings: (1)VCC1, VCC2supply voltage: -0.3 to 6.5V when VCC1=AVCC; (2)VCC2, supply voltage: -0.3 to VCC1+0.1V at VCC2; (3)AVCC, analog supply voltage: -0.3 to 6.5V; (4)Vi, input voltage: -0.3 to VCC1+0.3V; (5)Vo, output voltage: -0.3 to VCC1+0.3V; (6)Pd, power dissipation: -0.3 to 6.5V; (7)Topr, operating ambient temperature: -20 to 85℃; (8)Tstg, storage temperature: -65 to 150℃.

Parametrics

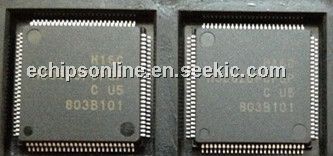

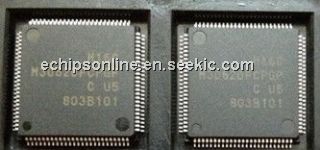

The M30620FCPGP is a single-chip microcomputer. The device is built using the high-performance silicon gate CMOS process. It is packaged in a 80-pin,100-pin and 128-pin plastic molded QFP. The M30620FCPGP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, the M30620FCPGP is capable of executing instructions at high speed. In addition, the M30620FCPGP contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations. The M30620FCPGP is suitable for Audio, cameras, office/ communications/ portable/ industrial equipment, automobile, etc.

Features

M30620FCPGP features: (1)built using the high-performance silicon gate CMOS process; (2)using a M16C/60 Series CPU core; (3)operates using sophisticated instructions; (4)high level of instruction efficiency; (5)1M bytes of address space; (6)capable of executing instructions at high speed; (7)ontains a multiplier and DMAC.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M30620FCPGP#D3C
M30620FCPGP#D3C

IC M16C MCU FLASH 128K 100-LQFP
Data Sheet
0-1: $12.47
M30620FCPGP#D5C
M30620FCPGP#D5C

IC M16C MCU FLASH 128K 100-LQFP
Data Sheet
0-1: $11.88
M30620FCPGP#U5C
M30620FCPGP#U5C

IC M16C MCU FLASH 128K 100LQFP
Data Sheet
0-1: $10.56
1-10: $9.60
10-100: $8.16
100-250: $7.44
250-500: $6.96
500-1000: $6.38
1000-2500: $6.12
2500-5000: $5.95
5000-10000: $5.76
M30620FCPGP#U3C
M30620FCPGP#U3C

IC M16C MCU FLASH 128K 100LQFP
Data Sheet
0-1: $11.56
1-10: $10.51
10-100: $8.94
100-250: $8.15
250-500: $7.62
500-1000: $6.99
1000-2500: $6.70
2500-5000: $6.52
5000-10000: $6.31
M30620FCPGP#D7C
M30620FCPGP#D7C
Renesas Technology America
MCU 3/5V 128K I-TEMP 100-LQFP
Data Sheet
Negotiable
M30620FCPGP#D9C
M30620FCPGP#D9C
Renesas Technology America
MCU 3/5V 128K 100-LQFP
Data Sheet
Negotiable
M30620FCPGP#U7C
M30620FCPGP#U7C

IC M16C MCU FLASH 128K 100LQFP
Data Sheet
0-1: $12.66
1-10: $11.51
10-100: $9.78
100-250: $8.92
250-500: $8.34
500-1000: $7.65
1000-2500: $7.34
2500-5000: $7.14
5000-10000: $6.90
M30620FCPGP#U9C
M30620FCPGP#U9C

IC M16C MCU FLASH 128K 100LQFP
Data Sheet
0-1: $11.62
1-10: $10.56
10-100: $8.98
100-250: $8.18
250-500: $7.66
500-1000: $7.02
1000-2500: $6.73
2500-5000: $6.55
5000-10000: $6.34
