Product Summary
The A1302EUA-T is continuous-time, ratiometric, linear Hall-effect sensors. It is optimized to accurately provide a voltage output that is proportional to an applied magnetic field. This device has a quiescent output voltage that is 50% of the supply voltage. Two output sensitivity options are provided: 2.5 mV/G typical for the A1301, and 1.3 mV/G typical for the A1302. The Hall-effect integrated circuit included in each device includes a Hall sensing element, a linear amplifier, and a CMOS Class A output structure. Integrating the Hall sensing element and the amplifier on a single chip minimizes many of the problems normally associated with low voltage level analog signals.
Parametrics
Absolute maximum ratings:(1)Supply Voltage, VCC: 8V; (2)Output Voltage, VOUT: 8V; (3)Reverse-Supply Voltage, VRCC: –0.1V; (4)Reverse-Output Voltage, VROUT: –0.1V; (5)Output Sink Current, IOUT: 10 mA; (6)Operating Temperature of Ambient, TA, Range E: –40oC to 85oC; (7)Ambient, TA, Range K: –40oC to 125oC; (8)Maximum Junction, TJ(max): 165oC; (9)Storage Temperature, TS: –65oC to 170oC.
Features
Features: (1)Low-noise output; (2)Fast power-on time; (3)Ratiometric rail-to-rail output; (4)4.5 to 6.0 V operation; (5)Solid-state reliability; (6)Factory-programmed at end-of-line for optimum performance; (7)Robust ESD performance.

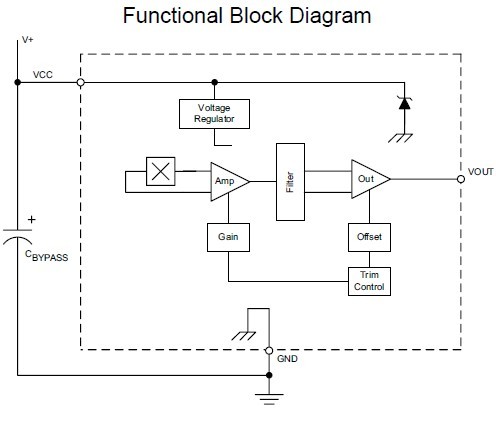

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A1302EUA-T |
IC SENSOR HALL EFFECT 3-SIP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
A130 |
30 AMP ADAPTER |
Data Sheet |
|
|
||||||||||||||||||||
A1301 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
A1301ELHLT-T |
IC SENSOR HALL EFFECT SOT23W |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
A1301EUA-T |
IC SENSOR HALL EFFECT 3-SIP |
Data Sheet |
|
|
||||||||||||||||||||
A1301KLHLT-T |
IC SENSOR HALL EFFECT SOT23W |
Data Sheet |
|
|
||||||||||||||||||||
A1301KUA-T |
IC SENSOR HALL EFFECT 3-SIP |
Data Sheet |
|
|
