Product Summary

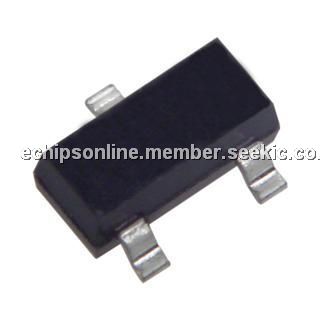

The MAX6150EUR low-dropout, micropower, three-terminal voltage references offer 5.0V output voltage, respectively. Low, 200mV dropout makes these devices ideal for 3V and 5V systems. Unlike two-terminal references that waste battery current and require an external resistor, the device supply current is virtually independent of input voltage variations, which translates to longer battery life.

Parametrics

Absolute maximum ratings: (1) Voltage (with respect to GND): IN:-0.3V to +13.5V, OUT, ADJ:-0.3V to (VIN + 0.3V); (2) Output Short-Circuit Duration (to IN or GND): Continuous; (3) Continuous Power Dissipation (TA = +70°C): 3-Pin SOT23 (derate 4mW/°C above +70°C):320mW; (4) Operating Temperature Range: -40°C to +85°C; (5) Storage Temperature Range: -65°C to +160°C; (6) Lead Temperature (soldering, 10sec): +300°C.

Features

Features: (1) 3-Pin SOT23 Package ; (2) Low, 200mV Dropout Voltage; (3) 75μA Supply Current, Independent of Input Voltage; (4) 15ppm/°C Typical Tempco (50ppm/°C max); (5) Stable for All Capacitive Loads up to 10nF; (6) Optimized for 3V/5V Operation.

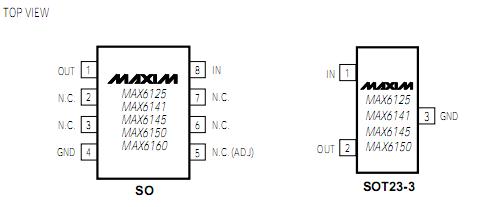

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX6150EUR+T
MAX6150EUR+T

Maxim Integrated Products

Voltage & Current References Low-Dropout 3-Term Voltage Ref

Data Sheet

0-1: $1.37
1-25: $1.04
25-50: $1.00
50-100: $0.91
